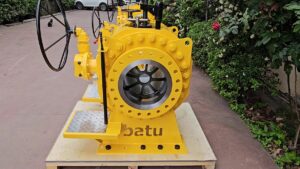

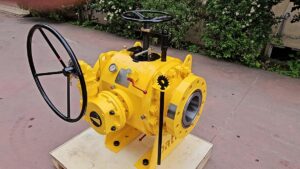

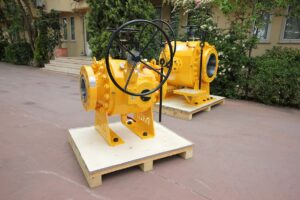

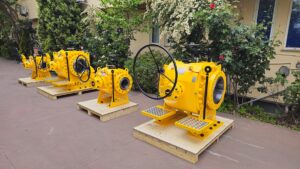

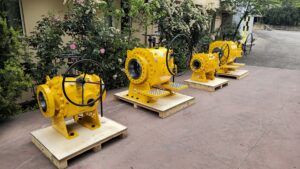

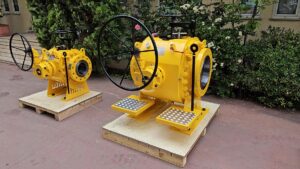

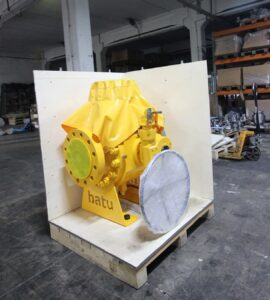

API 6D Pig Ball Valve Launcher and Receiver
Designed to launch and receive pipeline pigs safely and effectively, these systems ensure that pipelines remain clean, operational, and free of blockages.
API 6D Pig Ball Valve Launcher and Receiver
Key Technical Specifications
| Feature | Details |
|---|---|
| Standart Compliance | API 6D, ASME B16.34 |
| Size Range | 24” (DN 600) |
| Pressure Ratings | Class 150 – 2500 |
| Temperature Range | -46 °C / .+210 °C |
| Connection Types | RF, RTJ, BW, SW |
| Testing Standards | API 6D, API 598, API 6FA, ISO 5211 |
Enhance Your Pipeline Efficiency
API 6D Pig Ball Valve Launcher and Receiver systems are indispensable tools for pipeline maintenance and efficiency. Designed to launch and receive pipeline pigs safely and effectively, these systems ensure that pipelines remain clean, operational, and free of blockages.
As a trusted manufacturer, we provide high-quality API 6D Pig Ball Valves that meet industry standards, ensuring optimal performance in demanding applications. Our products are tailored to help businesses achieve seamless pipeline operations.
What is an API 6D Pig Ball Valve Launcher and Receiver?
The API 6D Pig Ball Valve Launcher and Receiver is a specialized system used for inserting and retrieving pipeline pigs. These pigs are utilized for cleaning, inspecting, or separating fluids in pipelines. The system typically consists of:
- A Launcher: For inserting the pig into the pipeline.
- A Receiver: For safely retrieving the pig after its operation.
Key features:
- Complies with API 6D standards.
- Designed for high-pressure and high-temperature environments.
- Ensures operator safety and environmental protection.
Product Features
-
Robust Design
Manufactured with durable materials to withstand extreme conditions and ensure long service life. Ease of Operation
User-friendly mechanisms allow for quick and safe pig launching and retrieval.Safety Compliance
Features advanced safety mechanisms to protect operators and the environment.
CONTENT
Customizable Options
Tailored solutions to meet specific pipeline requirements, including size, material, and pressure ratings.
Seamless Integration
Compatible with existing pipeline systems for hassle-free installation.
Applications
API 6D Pig Ball Valve Launcher and Receiver systems are widely used across various industries, including:
- Oil and Gas Pipelines :
Ensuring smooth transport and regular maintenance. - Petrochemicals :
Cleaning and inspecting critical pipeline infrastructure. - Water Transmission :
Maintaining efficiency in large-scale water pipelines. - Power Generation :
Supporting reliable operations in high-pressure steam and water pipelines.
Benefits of Choosing Our Products
- High-Quality Manufacturing
Our products comply with API 6D and other international standards, ensuring reliability and durability. - Cost-Efficient Solutions
Minimize operational downtime with efficient and reliable pigging systems. - Expert Support
Receive comprehensive technical assistance from project planning to post-installation maintenance. - Global Availability
Trusted by clients worldwide for timely delivery and exceptional service.
Why Partner with Us?
- Proven Expertise :
Decades of experience in manufacturing pipeline equipment. - Custom Solutions :
Tailored to meet the unique needs of every project. - Commitment to Quality :
Focused on delivering products that exceed industry standards.
PIG Ball Valves Advantages Over Traditional Pig Launcher Systems
Pig Ball Valve, normally consists of Pig Launching & Pig Receiving valve, is a device for loading and receiving cleaning pigs and detecting tools to clean the internal pipe periodically, and it is especially widely used in Oil & Gas pipeline industry. The field tested pig valve offers durability, reliability service for oil and gas applications to improve the piping transportation efficiency. It can be easily and safely used with most of the popular pig styles, either one-piece molded pigs or the spherical pigs that are intended for use in pig ball valves.
Pig Ball Valve advantages over the traditional barrell style pig launcher & receivers
- Smaller Footprint reduces the space required for pigging facilities
- Simple configuration means a reduced requirement for infrastructre and decreases field construction time.
- Less Equipment and functionally simple design means fewer valves and controls to operate, minimizes training and maintanence costs.
- Built-in features means safer operations for operations personnel and less man power
- Reduce emissions by more than %80 compared to traditional pig launching methods, saving the valuable medium
- Overall Pig Ball Valves allows cost savings ranging between %25 to %60 over traditional pig launcher and receiver systems.

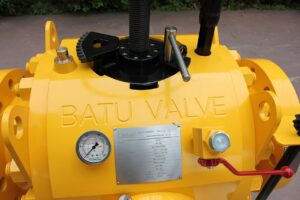

BATU Pig Ball Valve advantages over other Pig Ball Valves
Batu Pig Valves are completely customizable according to customizers requirements. Customizable face to face lengths, customizable ball sizes to accomodate different pigs or other special features can be implemented.
Batu Pig Valves are CNC Machined from forged steel.
Batu Pig Valves have oversized balls that accommodes longer pigs which allows wider range of pig selections.

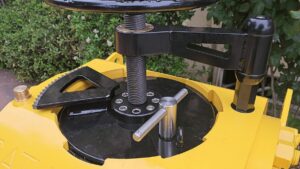

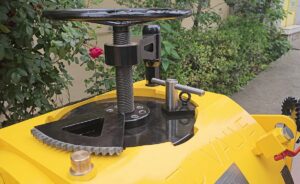

Batu Pig Valves have a guide implemented to restrain pinchinng of the pig and to avoid obstructing of the system during loading.
Double Block and Bleed construction allows it to be used as a traditional block valve reducing the number of valves required in the pigging facility.
Designed in accordance to NACE for sour service.
Alternative materials are available for different conditions.

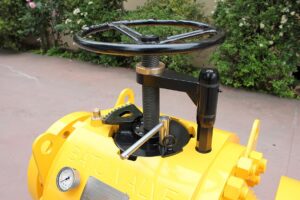

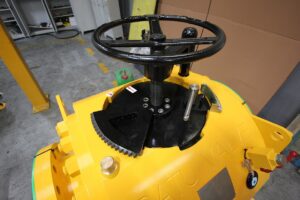

All Batu Pig valves are equiped with ROTORK gearboxes
Batu Pig valves are constructed with %100 European origin materials and %100 manufactured in Turkish facilities.
Contact Us
For more information about our API 6D Pig Ball Valve Launcher and Receiver systems or to request a quote, reach out to us today.
Choose us for reliable, efficient, and high-performance pipeline solutions. Request your quote now!
